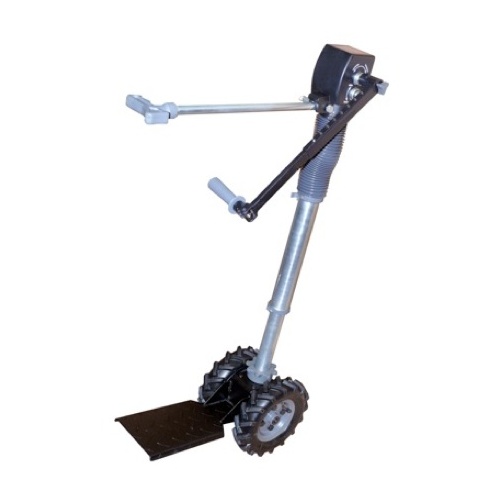

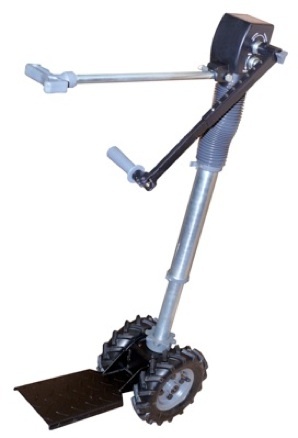

EasyHitch Jockey Wheel

✤Overall Weight 16Kg

✤Overall Height (with wheel assembly) 980mm (H)

✤Wheel Assembly 6Kg 250mm (H) x 200mm (W) x 215mm (D)

✤Main Body (without wheel assembly Footplate™ or handles) 7.0Kg - 795mm (H) x 108mm (W) x 108mm (D) Drive Handle 0.8Kg -

✤Extendable Length 240mm x 390mm x 130mm (W) Tiller Handle 0.5Kg - 400mm (L) x 110mm (W) Clamp Tube 300mm (L) x 48mmØ

✤Clamp Height Adjustment (assembled) 220mm (min) to 730mm (max) from ground.

✤Operation stroke: 255mm Drive Gear Ratio 1:4.8 Tyres Diameter: 215mmØ Width: 55mm Max.

✤Tyre Pressure: 30 PSI Maximum

✤Safe Working Loads 2000Kg (trailer/caravan) 150Kg (clamp weight) 150Kg (Footplate™)

✤Operating Clearances Wheel Assembly removal min 220mm (H)

✤Tiller Rotation (from clamp centre) 500mm

✤Radius Drive Handle Rotation (from clamp centre) Closed: 240mm

✤Radius Extended: 390mm Radius
